Django-Flowcontrol

Django Flowcontrol is a Django app that allows creating and running flows of actions including branching and looping logic.

• Actions are defined in Python code and can have optional per-instance configuration. The app provides built-in actions for conditional logic, loops, and state management.

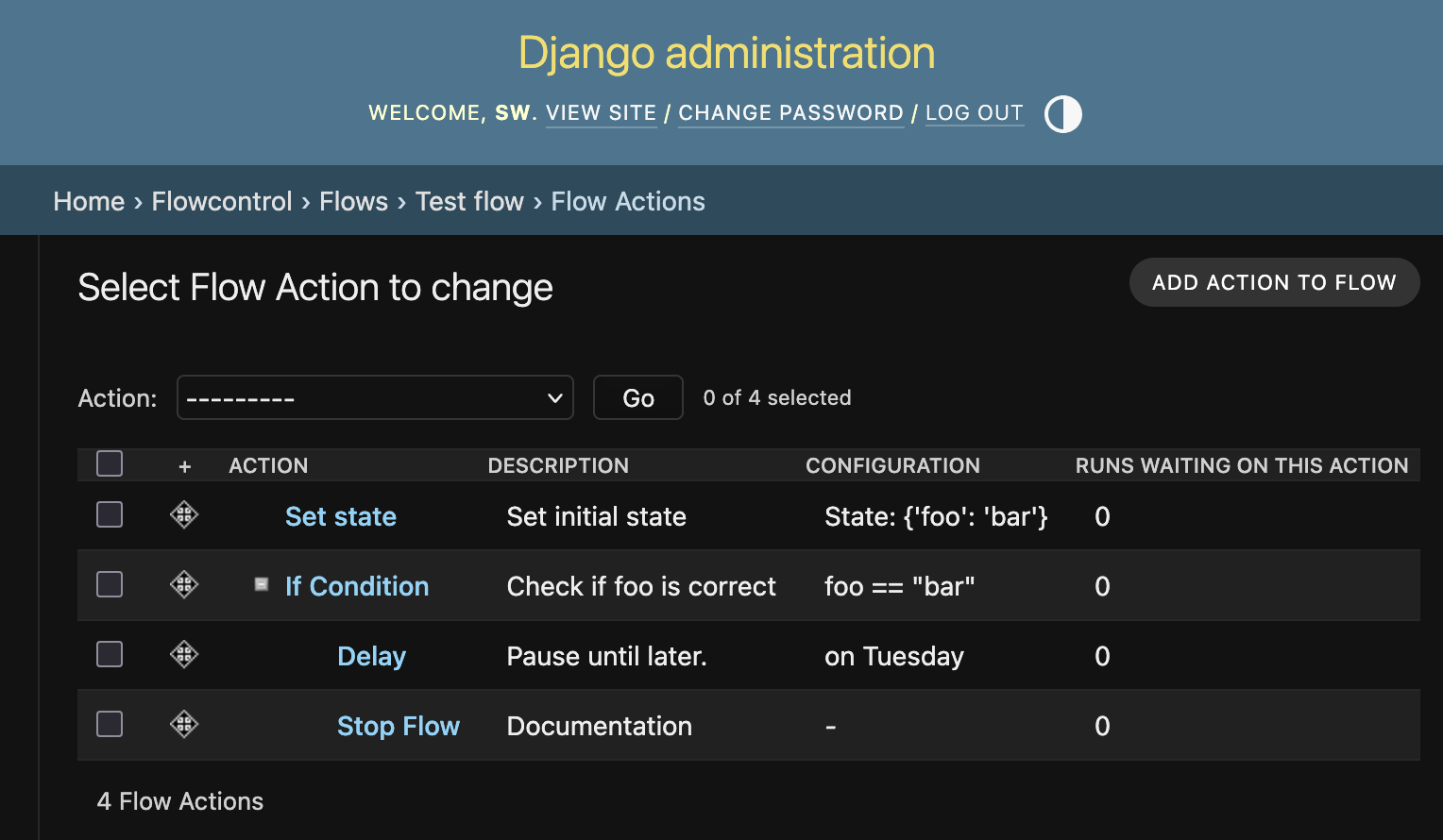

• Flows with their actions and triggers are defined in the Django admin.
• A running instance of a flow – a flow run – has persistent state and can have an optional model object associated with it.

Install

pip install django-flowcontrol

Add flowcontrol and treebeard to your INSTALLED_APPS in settings.py and make sure to include the other required Django apps:

INSTALLED_APPS = [
    ...
    # Required Django apps
    "django.contrib.auth",
    "django.contrib.admin",
    "django.contrib.contenttypes",
    "django.contrib.sessions",
    "django.contrib.messages",
    "django.contrib.humanize",  # for number formatting
    ...

    "treebeard",
    'flowcontrol',

    ...
]

Run migrations to create the necessary database tables:

python manage.py migrate flowcontrol

Run the example project

To run the example project, clone the repository and install the dependencies:

uv run manage.py migrate
uv run manage.py createsuperuser
uv run manage.py runserver

Go to http://localhost:8000/admin/ and log in with the superuser credentials you created.

License

MIT
